MANUAL RING FILTER HEADS
MANUAL RING FILTER HEADS

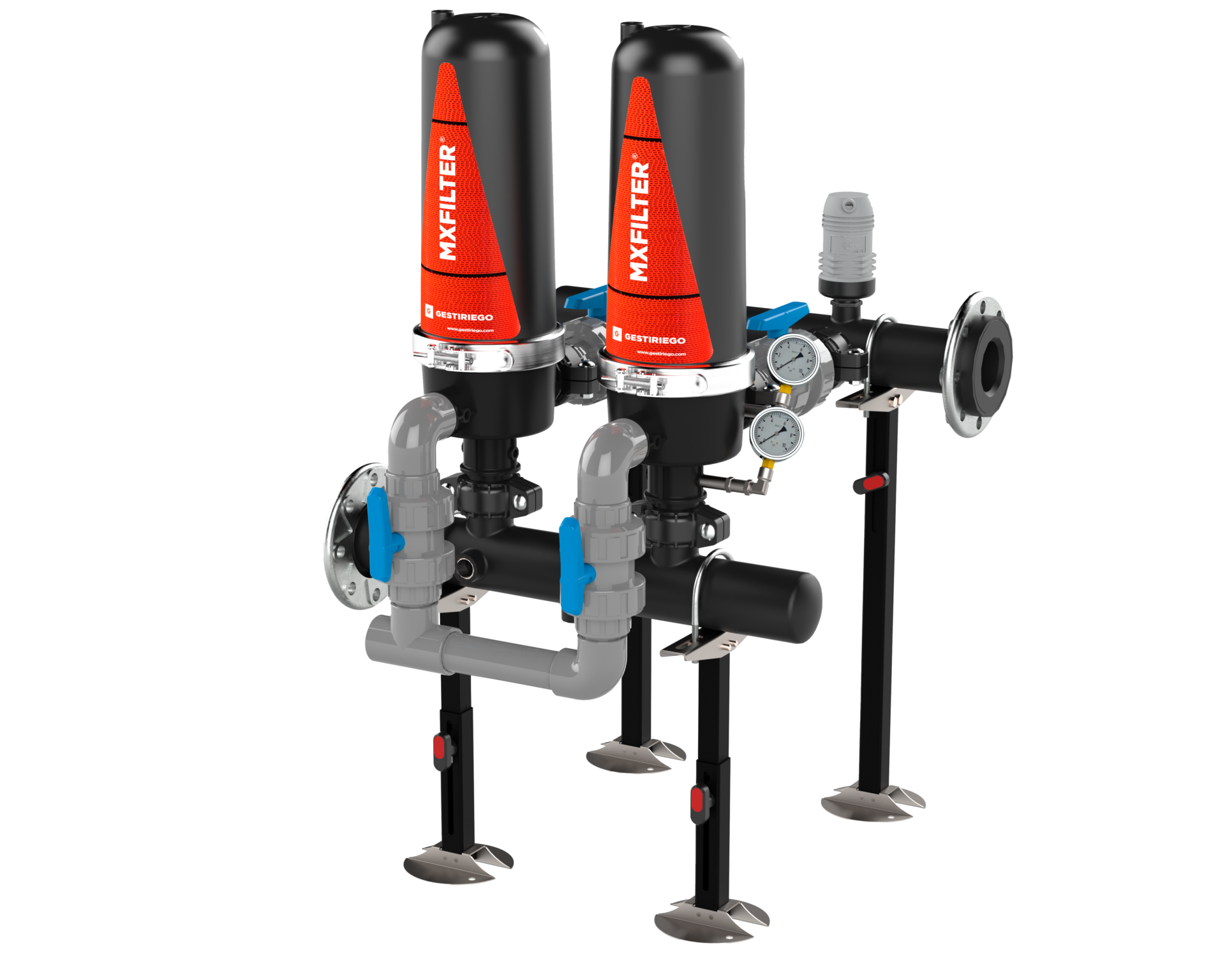

Manual MXFILTER equipment features filters, inlet and outlet connectors, manual ball valves and pressure gauges.
(*) Does not include solenoids or cleaning controller (control unit).
R+D+i Department
With more than 25 years of experience in product development in the sector.
Personalised advice
Our technical sales team will solve your doubts or needs.
Technical information:
*In the mobile version, swipe to the right to view the entire table.
MANUAL RING FILTER HEADS | ||||
MAX. FLOW RATE | COLLECTORS | Nº OF FILTERS | CODE | CODE |
(m³/h) | (mm) | 120 mesh | 150 mesh | |
2” | ||||
40 | 90 | 2 | 458142 | 458135 |
60 | 110 | 3 | 458145 | 458144 |
80 | 110 | 4 | 458147 | 458146 |
100 | 110 | 5 | 458143 | 450860 |
120 | 160 | 6 | 458149 | 458148 |
