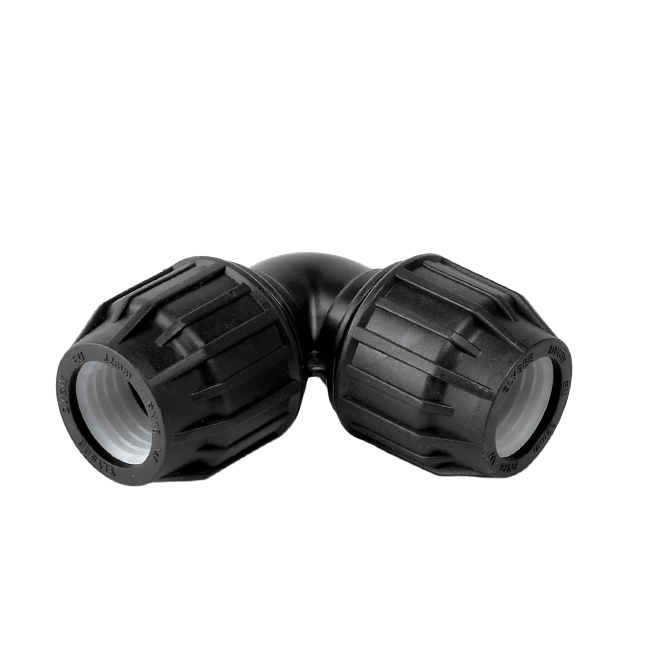

90º ELBOW CONNECTOR

POLYETHYLENE PIPE ACCESSORY

POLYETHYLENE ACCESSORY

Range of accessories for the transport of high pressure water, irrigation, gaseous fuels, compressed air, chemical solutions and sludge.

Accessories can be adjusted using a metal wrench.



Technical Data Sheet

R+D+i Department

With more than 25 years of experience in product development in the sector.

Personalised advice

Our technical sales team will solve your doubts or needs.

Need help?

Technical information:

*In the mobile version, swipe to the right to view the entire table.

90º ELBOW CONNECTOR
MEASUREMENTS
UNIT. BOX
CODE
(mm)
20
240
457135
25
195
457136
32
100
457137
40
60
457138
50
36
457139
63
24
457140
75
12
457141
90
8
457142
110
4
457134

POLYETHYLENE ACCESSORIES MATERIALS

•BODY: PP-B polypropylene copolymer

•O-RING: NBR70 elastomeric rubber

• REINFORCING RING: EPDM elastomeric rubber for Zeeflex (pool hose fittings): stainless steel

• SPLIT RING: polyacetal

POLYETHYLENE ACCESSORY RANGE

Clamping the part from Ø20 mm to Ø315 mm, the threaded part from Ø1/2” to Ø4”

Metric series PN16: from Ø16mm to Ø110mm

Metric series PN10: from Ø20mm to Ø63mm

Pressure adjustment bar PN16: Ø20mm – Ø25mm and Ø32mm

Zeeflex Pool Hose Series: Ø50 & Ø63mm

Rural series PN10 bar: from 3/4” to 2

PRESSURE RANGE POLYETHYLENE ACCESSORIES

16 bar at 20ºC for accessories from Ø16 to Ø63mm

12.5 bar at 20ºC for accessories from Ø75 to Ø110mm

POLYETHYLENE ACCESSORIES APPLICATIONS

These accessories are suitable for use in drinking water supply systems. The accessories are suitable for exposure to sunlight (UV) and provide excellent chemical resistance.
